The typical method of manufacturing a transformer involves creating a core, insulating it, winding a magnet wire around to create a primary winding, insulating it, winding a magnet wire over the insulation to create a secondary winding, and finally insulating it too, to complete the transformer.
What are core caps?

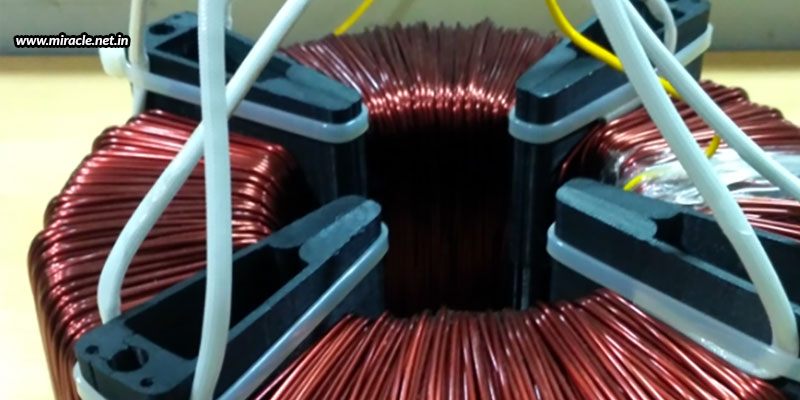

To support the primary and secondary windings, and to reduce leakage current, segmented core caps are used in alternate sectors. Several modular electrically insulating segments snap or join together to form core caps for covering the transformer core. These core cap modules insulate the windings from the core over the full range of windings, allowing double-wall insulation between adjacent windings, significantly reducing leakage current. They also help in direct cooling of the core by ambient or forced air, without interfering with the insulation. The segments of each module include a pair of spaced insulating walls between which a core-covering panel portion is connected. The walls are inclined at a predetermined angle to each other, typically 30, 45, or 60 degrees, which is what determines the number of segments required to complete one core cap.
Benefits of using core caps
Reduced time invested – With the installation of core caps, there is no need for ground and inter-winding insulation and outer wrap. Also, both the primary and secondary windings can be wound on one machine only. In addition, providing the core cap includes mounting holes, which means that the time to fill the center of the transformer with epoxy is not required. All of this results in lesser time invested to manufacture and handle the transformers.
Reduced weight of the transformer – As mentioned above, there is no epoxy required to fill the center of the transformers if core caps are installed. Besides, no mounting washer will also be necessary. Hence, the weight of the transformer is also considerably reduced.
Reduced costs – Assembling core caps requires lesser skill levels that other core insulation techniques. Also, the cost to tool a smaller part for injection moulding is lesser than the cost of tooling a larger part. Thus, the cost to tool and assemble the core caps is way lesser. This means that the overall manufacturing costs of the transformer will be lesser too.
Reduced temperature rise – With core caps, there is a direct path for heat to escape into the environment. There is also no inter-winding insulation and outer wrap that traps heat. Thus, with all windings having a direct path for heat to transfer to the environment, then the temperature rise of the transformer is also reduced.
As you can see, core cap transformers help with reducing the time, weight, and costs of the transformer to a considerable extent, while also reducing the heat buildup. So, it can be clearly seen why core cap transformers are much better than standard transformers. You now know which kind of transformers to opt for, for your next application.
